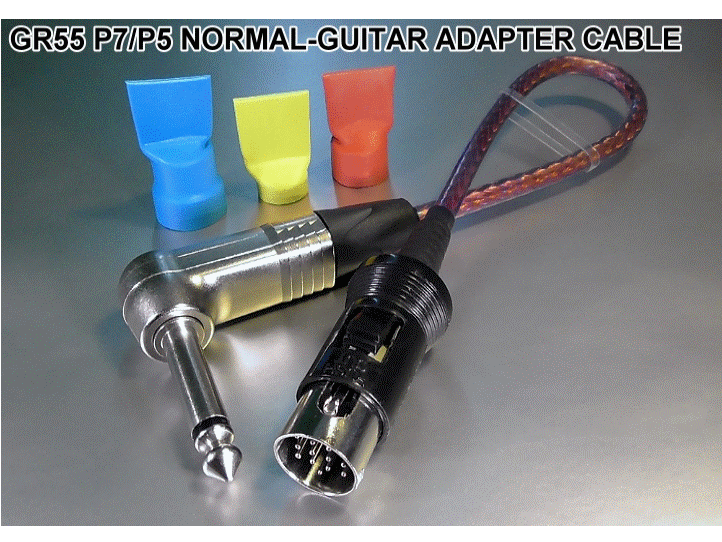

ROLAND GR-55 P7/P5 ADAPTER CABLE
The cable that turns a GR-55 into a normal-guitar effects pedal
The cable that turns a GR-55 into a normal-guitar effects pedal
FEATURES:
- P7 normal-guitar input and P5 for PCM 'String A' PCM voice triggers.
- Allows external normal-guitar buffer use for exceptionally high GR-55 audio quality, with a straight analog-to-digital guitar signal path. GR-55 adapter cable block diagram.
https://separate-strings.co.uk/gr55adpath.jpg
- Typical Boss pedal input buffer to GR-55 output specifications:
Noise-Floor -94.39dB. Harmonic Distortion: 0.00874% THD.
A custom +10dB gain-stage buffer pedal can register a -104dB
noise-floor. Hi-end project guitar buffer schematic:
https://separate-strings.co.uk/bufferschematic.png
- GR-55 normal-guitar re-amping via a DAW interface @ -27dB signal out. Hands-Free normal-guitar & P5 PCM voice patch changing. No more 'play a bit, adjust a bit' tone-search.
SPECIFICATIONS:
LENGTH: 12 inches / 30.48 cm.

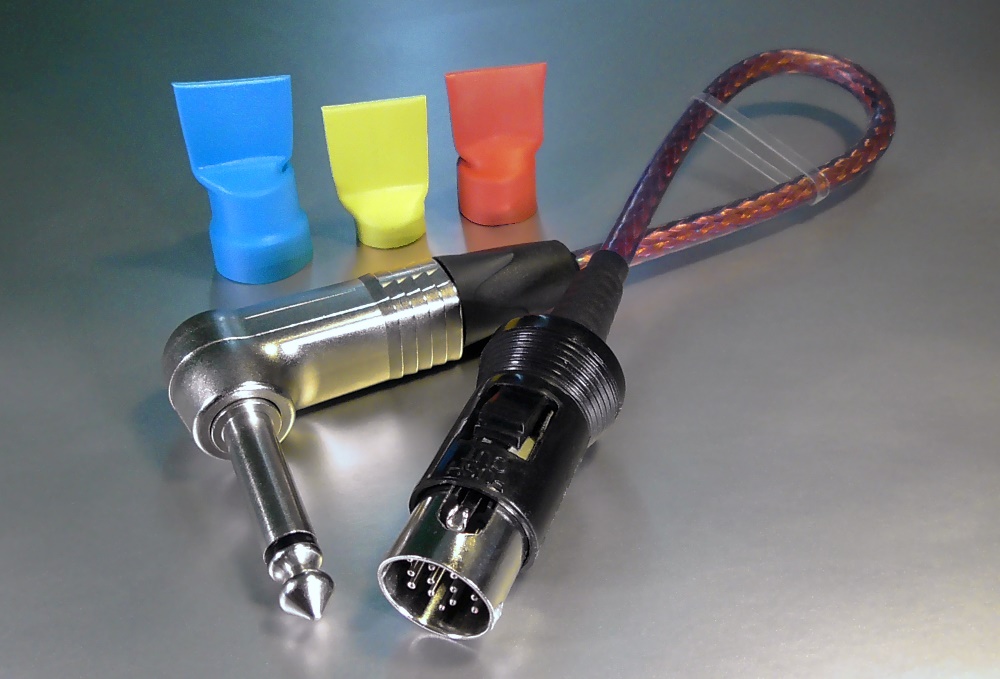

CONNECTORS: 13-Pin locking plug - Neutrik right-angled T/S jack plug. CABLE: Dual-screened Sharkwire SG06E1.
ELECTRICAL: Resistance signal core: 0.04Ω. Screen/Shield: 0.02Ω.
Capacitance core to screen: 33pF with no audible cable coloration.
Adapter cable price : £30.00GBP / $38.00USD. Plus tracked shipping.
ADAPTER CABLE MOVIE
