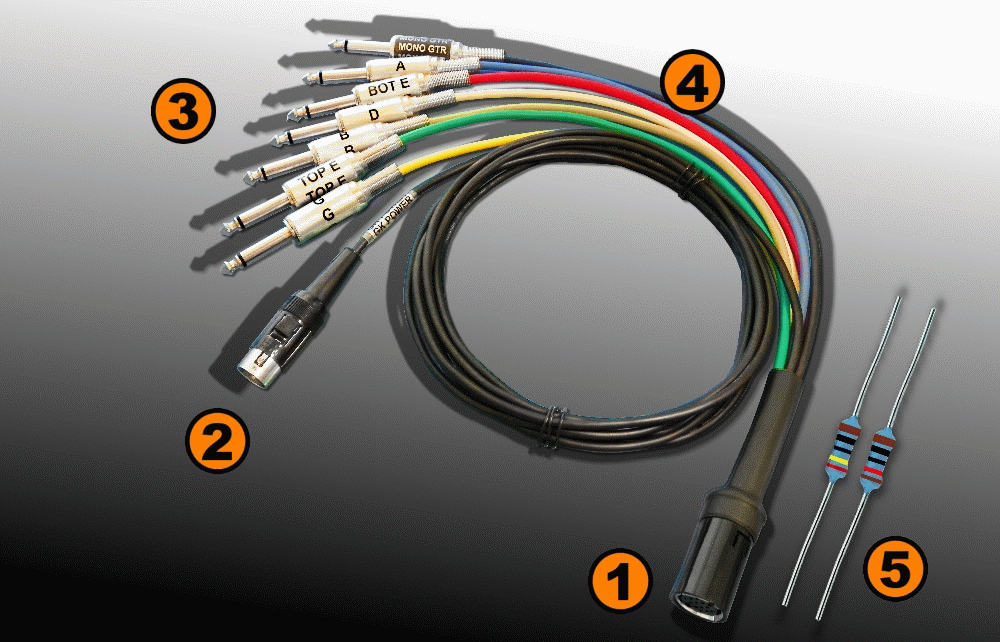

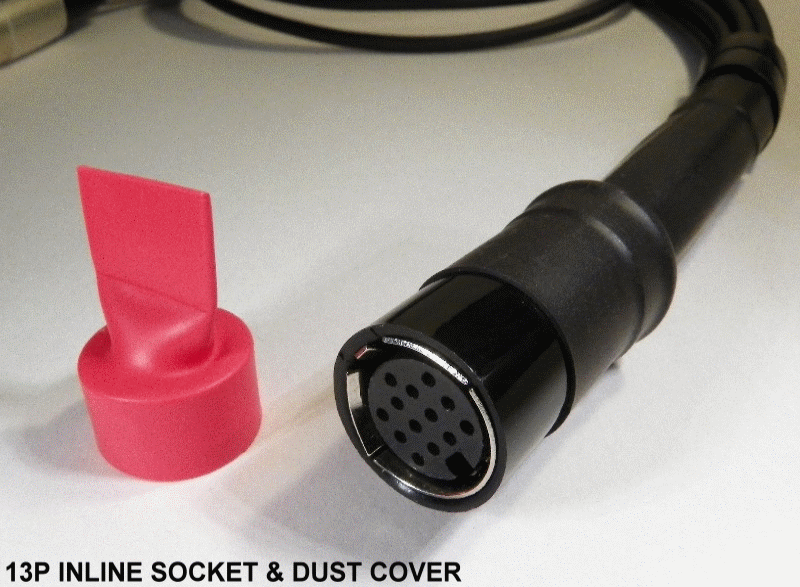

13-Pin line-socket. GK pickup input for recording separate strings.

V-synth input with re-amping, re-guitar and re-synth etc.


13-Pin GK pre-amp power cable (3M).  Connects to a v-synth (power)

or an optional dual 7-9vdc PSU.


Separate string output/input jacks (+ Mono out).  XLR and Phonos are

an option.


4.1. Heavy-duty hi-end oxygen-free-copper cable @ 20” inch / 51cm length.

4.2. Each string signal core is separately shielded.

4.3. Low cable resistance @ 0.04 Ohms per separate string core.

4.4. Low capacitance from core to screen @ 216pF = no audible cable colouration.


Pin-8 ‘Phantom  power’ with internal in-line socket resistors. Pin-8 allows

access to any v-synth voices. Thanks to Elantric @ the v-guitar forum.


Price: £75.00GBP plus trackable shipping.  3 years warranty with RTB.
